旋转给袋机,颗粒给袋包装机
    • 旋转给袋机,颗粒给袋包装机

    旋转给袋机,颗粒给袋包装机


    旋转式给袋机

    Rotary premade bag packaging machine-MG-GD210/250/300

    功能特点:Features:

    ·整机设计符合GMP标准,并通过CE认证。

    ·配套故障自动跟踪报警系统,运行状况实时显示。

    ·动作执行采用全伺服控制系统,执行可靠快速且准确。

    ·空袋跟踪监测装置,实现不开袋或不落料时不封口,节省包材。


    ·The whole machine is designed in accordance wit GMP standards and has passed CE certification

    ·Full servo control system is adopted for actio execution, which is reliable, fast and accurate.

    ·The empty bag tracking and monitoring devic

    realizes no sealing without bag opening oblanking, so as to save packaging materials.

    ·The whole machine has the structure of eighstations and ten stations.It is centrally controlled by the tested programmable controller PLC (bag movement function) and six flat touch screens,which is simple and convenient to operate.

    型    号 ModelMG-GD210MG-GD250MG-GD300
    包装速度 Packaging speed80bags/min70bags/min60bags/min
    包装规格 Packaging specifications

    长L≤360mm,宽W90-120mm

    长L≤400mm,宽W130-250mm长L≤400mm,宽W160-300mm

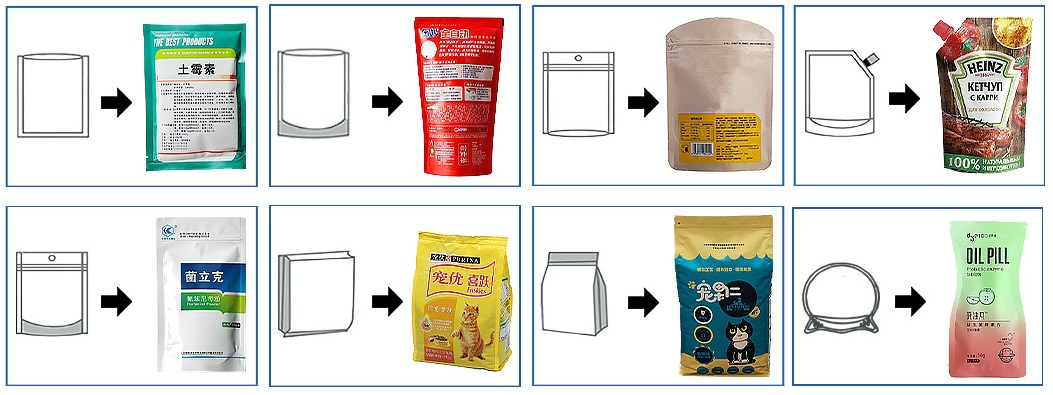

    包装形式 Packaging form预制袋(平面袋、自立袋、拉链袋、手提袋、M袋等)Premadebags(flatbags,self-supportingbags,zipperbags,handbags,mbags,etc.)

    气    源 Air source

    5-7Kg/m³,500L/min
    包装材料 Packaging单层PE、PE复合膜、纸膜及其他各种复合膜 Single layer PE, PE composite film, paper film and other composite films
    整机重量 Weight of complete machine≈700Kg≈700Kg≈720Kg
    电源类型 Type of power supply380V
    总 功 率 Total power7Kw

    外型尺寸 Overall dimension

    1950mmX1400mmX1520mm1950mmX1400mmX1520mm2100mmX1500mmX1520mm
