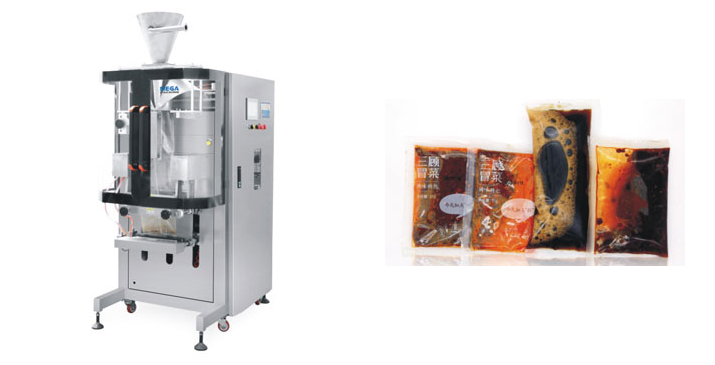

MG720液体包装机
    • MG720液体包装机

    MG720液体包装机


    酱油包装机-液体包装机-MG720包装机

    Liquid packaging machine-MG720

    功能特点Features
     ·使用简单便捷,充分考虑了设备的易操作、易清洁及易维护。

    ·能够进行大容量快速包装。最大包装规格15kg;最大包装速度可达20包/分。

    ·采用高可靠及知名进口品牌控制元件,保证了整机的更加可靠稳定运行。

    ·实现高温无菌包装。最高物料温度可达100℃以上,可实现无菌包装,提升了包装产品的保持期。提高成品率,采用较强有力的挤压清料辊,清楚了封口处稍微残留物料,保证了横封口的可靠性。

    ·可适用多种规格产品的包装制造。通过替换想要部件,一台包装机即可对应1kG-15KG产品的包装。

    ·减少包装成本,连续式灌装实现了一边制袋一边填充,减少了制成品袋的费用,减轻材料

    库存与管理费用。无空气包装,卷膜直接纸袋、连续充填包装,实现了产品的无气包装,提升了包装产品的保持期和档期。保证食品安全,整机全部不锈钢制造,与食品接触部分均为食品级材质,全自动封口包装,无人工参与,减少了细菌及杂物混入的可能。带有过程称重系统的型号克设定目标值,包装机自动称的每一包产品重量,并反馈给主机,用于实现闭环控制,实现更高的精度包装。

    ·It is simple and convenient to use, and the ease of operation, cleaning and maintenanceof the equipment are fully considered.

    ·Capable of large capacity and rapid packaging. Maximum package size 15kg; The maximum packaging speed can reach 20 packs / min.

    ·High reliability and well-known imported brand control elements are adopted to ensure more reliable and stable operation of the whole machine.

    ·Realize high-temperature aseptic packaging. The maximum material temperature can

    reach more than 100 ℃, which can realize aseptic packaging and improve the retention period of packaged Improve the rate of finised product, adoptinmg strong extrusion cleaning roller, clear the slightly residual materials at the sealing part, and ensure the reliability of transverse sealing.

    ·It is applicable to the packaging and manufacturing of products of various specifications. By replacing the desired parts, one packaging machine can correspond to the packaging of 1kg-15kg products.

    ·Reduce the packaging cost. Continuous filling realizes filling while making bags,reduces the cost of finished product bags, and reduces the cost of material inventory and management.

    ·Airless packaging, roll film, direct paper bag and continuous filling packaging real the retention period and schedule of packaged products.

    ·To ensure food safety, the whole machine is made of stainless steel, the parts in contact with food are made of food grade materials, fully automatic sealing and packaging without manual participation, reducing the possibility of mixing bacteria and sundries.

    ·The model with process weighing system sets the target value,and the packaging machine automatically weighs each package of products and feeds it back to the host for closed-loop control and higher precision packaging.


    型   号 ModelMG270
    包装速度 Packaging speed5-20ppm
    包装重量 Packaging weight1000-15000g
    袋宽范围 Bag width range150-350mm

    袋长范围 Bag length range

    200-800mm
    生产日期打印 Production date printing选配 Optional
    袋长色标控制 Bag length color code control选配 Optional
    主机电压/功率 Host voltage / power3X380V+N/2KW
    气源/耗气量 Air source / gas consumption0.6Map/0.3m³/min
    主机重量 Weight of main engine613KG
    主机外形尺寸 Overall dimension of main engineW1110xL1550XH2065mm
