高速立式包装机
    • 高速立式包装机

    高速立式包装机

    豌豆炒货包装机-高速立式包装机

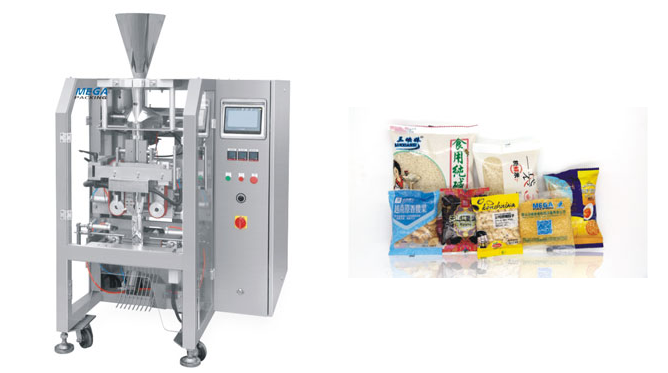

    High speed vertical packaging machine

    功能特点 Features

    ● 机器主要采用进口PLC控制器任意设置袋长,设定生产总数量、显示生产数量、设置总产量自动停机。

    ● 智能型温控仪双路控制横、纵封体温度。智能光电定位,抗干扰强连续两袋光标异常即停机报警。

    ● 性能稳定可靠、本机外形美观大方、全不锈钢结构、符合食品和医药包装的卫生要求。

    ● 采用量杯计量,对于颗粒类物料计量准确,符合国家计量标准。

    ● 制袋系统同步伺服电机细分技术制袋精度高,误差小于1毫米。

    机器耗电量小、占地面积小。


    ● The machine mainly adopts the imported PLC controller to set the length of the bag arbitrarily, set the total number of package. show the quantity of packaged, and set the total bags package quantity with automatically stop function.

    ● Intelligent temperature control instrument behaves dual control of the horizontal and vertical sealing temperatures.

    ● Intelligent photoelectric positioning, strong anti- interference, stop and alarm for two bags with abnormal alarm.

    ● Stable and reliable performance, nice appearance,full stainless steel structure, conforming to the hygienic requirements of food and medicine packaging.

    ● Measuring by measuring cup. the measuring accuracy of granular materials is in line with national standards.

    ● The system of bagging system using the servo motor subdivision technology.the bag forming precision is high, the error is less than 1 mm.

    ●Lower power consumption and Iittle space occupation.


    技术参数Technical Parameter
    型  号 ModelMG 高速立式包装机 MG high speed vertical packing machine
    成袋尺寸 Bag size

    长(L)40-300MM 宽(W)50-200MM(可定制)(Customized)

    压缩空气 Compressed air 6Kg/m³,0.2m³/分钟 min
    包装速度范围 Packaging speed range≤60-150包/分钟  Packet/min

    功率消耗 Power consumption

    4.5Kw

    外形尺寸(长/宽/高) Dimensions(L*W*H)

    1350X1065X1450mm

    整机重量 Weight500kg
