MG1050立式包装机
    • MG1050立式包装机

    MG1050立式包装机

    糖果包装机-大袋包装机-MG1050包装机

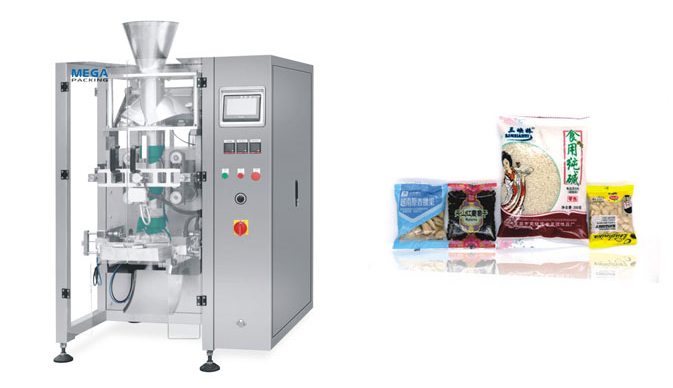

    Vertical packaging machine-MG1050

    功能特点 Features

    ● 该机器集制袋、充填、封口、打印、冲孔、计数于一体，采用伺服电机同步带拉磨，具有自动纠偏功能。切断刀可以采用平刀、锯齿、点划线三种方式之一，PLC等控制元器件均采用国际名牌产品，性能可靠。

    ● The machine integrates bag making,filling, sealing, printing, punching and counting. It adopts servo motor synchronous belt to pull and grind, and has the function of automatic deviation correction. The cutting knife can be one of the three ways: flat knife, sawtooth and dotted line. PLC and other control components are international famous brand products with reliable performance.


    技术参数Technical Parameter
    型  号 ModelMG1050
    袋  型 Bag type插脚袋、手提袋、枕式袋 Gusset bag, Handbag, Pillow bag
    操作模式 Operation mode 西门子触摸屏控制 Siemens touch screen control
    速  度 Speed


    25-50包/分钟 Packet / min

    袋  长 Bag lenght

    50-850mm

    袋  宽 Bag width

    280-535mm

    卷膜宽度(最大膜宽) Maximum film width


    1100mm

    薄膜厚度 Film thickness


    0.04-0.12mm

    最大包材外径Maximum outer diameter of packaging materialΦ600mm
    材质芯直径Material core diameterΦ75mm
    电    压Voltage

    380V 50-60HZ(可根据客户要求) (According to customer requirements)

    耗 电 量Power consumption4.5KW
    压缩空气Compressed air requirements0.6Mpa,0.36m³/分钟 min
    包装机尺寸Packaging machine size2155X1635X2640mm(长X宽X高)(LxWxH)
    重    量Weight1200KG
